Decoding Inverter Error 09 A Step by Step Guide to Troubleshooting
Hybrid Inverter Fault 09 Tutorial How to Solve Error 09
Introduction
Hybrid inverters are key components in modern solar energy systems
ensuring efficient energy management However, like any technology
they can encounter errors one of which is Fault 09 In this blog
we will explain what Fault 09 means its common causes and step by step solutions to resolve the issue
Inverter error 09 can be a frustrating issue for homeowners and solar system operators
This error often indicates a problem with the inverter's internal components or connections
In this blog post we'll delve into the common causes of error 09 and provide practical solutions to help you resolve the issue
Understanding Error 09
Error 09 typically signifies a fault related to the inverter's DC to AC conversion process This can be caused by various factors including
Component failure:
A malfunctioning component such as a transistor or capacitor can cause the inverter to generate error 09
Check for Component Damage
If possible visually inspect the internal components of the inverter for signs of damage such as burn marks or bulging capacitors
If you're not comfortable with this consult a qualified technician
Consult the Inverter Manual
Refer to the inverter's user manual for specific troubleshooting guidelines and error codes
The manual may provide additional information on common causes and solutions for error 09
Conclusion
Error 09 can be a frustrating issue but by following the troubleshooting
steps outlined in this blog post you can often resolve the problem on your own
If you're unable to resolve the issue seeking professional help is essential to ensure the safety and efficiency of your solar system
If you know electronics then let us teach you how to fix this error 09
So first of all open the inverter and check if any parts are burnt
When I opened this inverter I didn't see any burnt stuff in it
So now we have to check its output section thoroughly with the meter

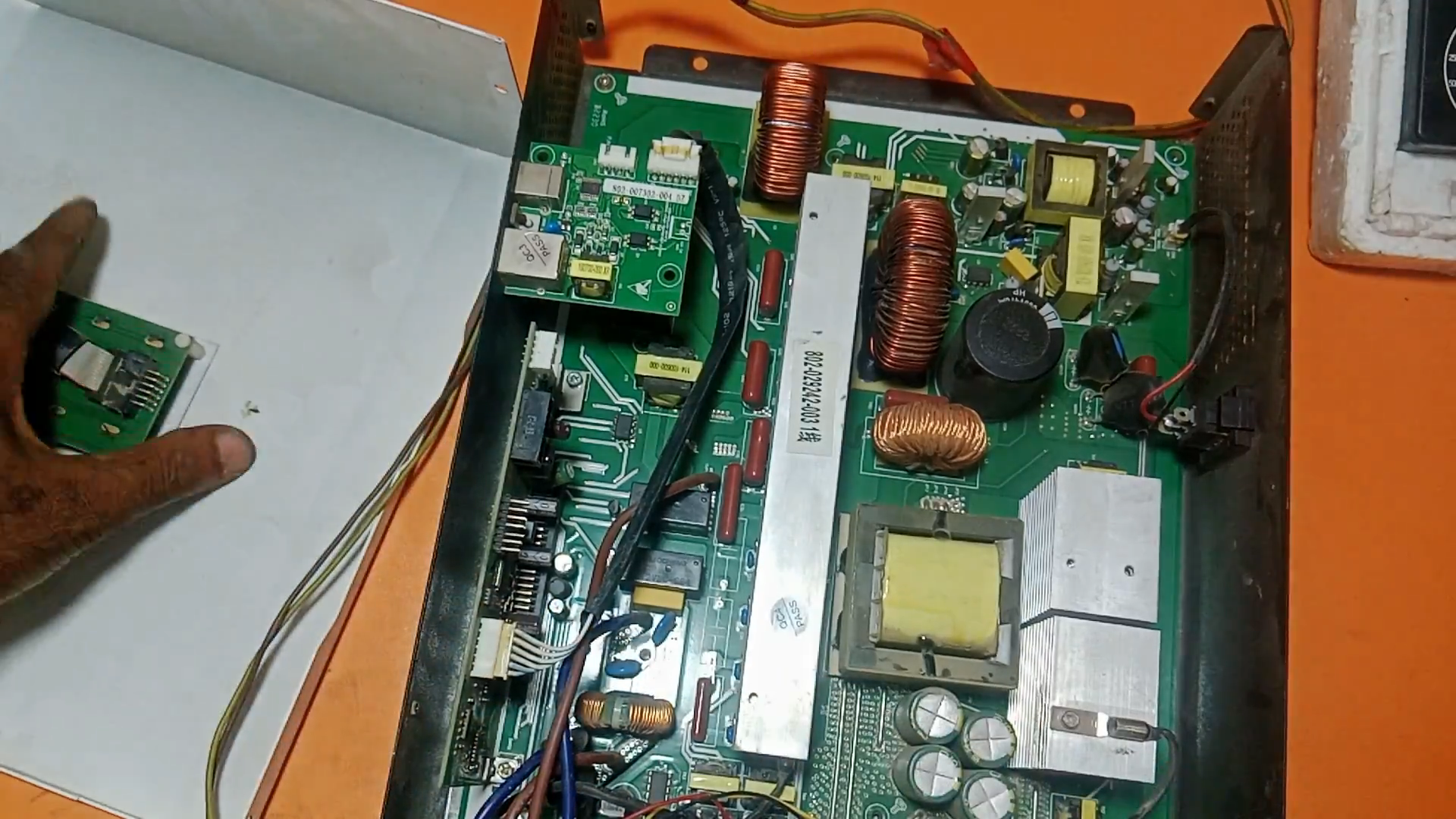

As you can see in the picture here in the output section 2 MOSFETs are bad showing short circuit
Fault 09 is coming due to these 2 mosfets, so to remove this fault 09 we have to carefully check all the parts attached to these 2 mosfets
Now I replace these 2 MOSFETs and the resistors attached to them so that we can remove the fault 09
After replacing this mosfet and resistors the fault F09 is gone in this inverter I have a 3kw inverter from SAkO company if you have another company inverter this is the way to trace the fault F09
Inverter Fault 09 How to Repair Fault 09 Error 09 Repair How To Repair Solar Inverter 3 kw solar inverter fault f09 3 kw solar inverter fault f09 error solar inverter fault How to Solve Error 09 in Off Grid Sako Inverters Trouble shooting for error 09
